By a Government Systems Engineer
Look, I know you’re here because you need to host a Minecraft server, run a security camera system, or finally set up that Plex server you’ve been promising yourself since 2019. Let’s get you up and running, then we’ll dive into the why and the “oh god what have I done” later.
Learning how to set up port forwarding doesn’t have to be complicated. Here’s the straightforward process:
ipconfig
ip route | grep default or netstat -nr | grep default
192.168.1.1
192.168.0.1
ip addr
canyouseeme.org
whatismyip.com
If you want to know what we just did – see further down What Port Forwarding Actually Does
Pro tip: Set a static IP for your device in your router’s DHCP settings, or the IP will change and your port forward will break. Future you will thank present you.
Now you know how to set up port forwarding on most consumer routers. The process is similar across brands, though the exact menu locations vary.

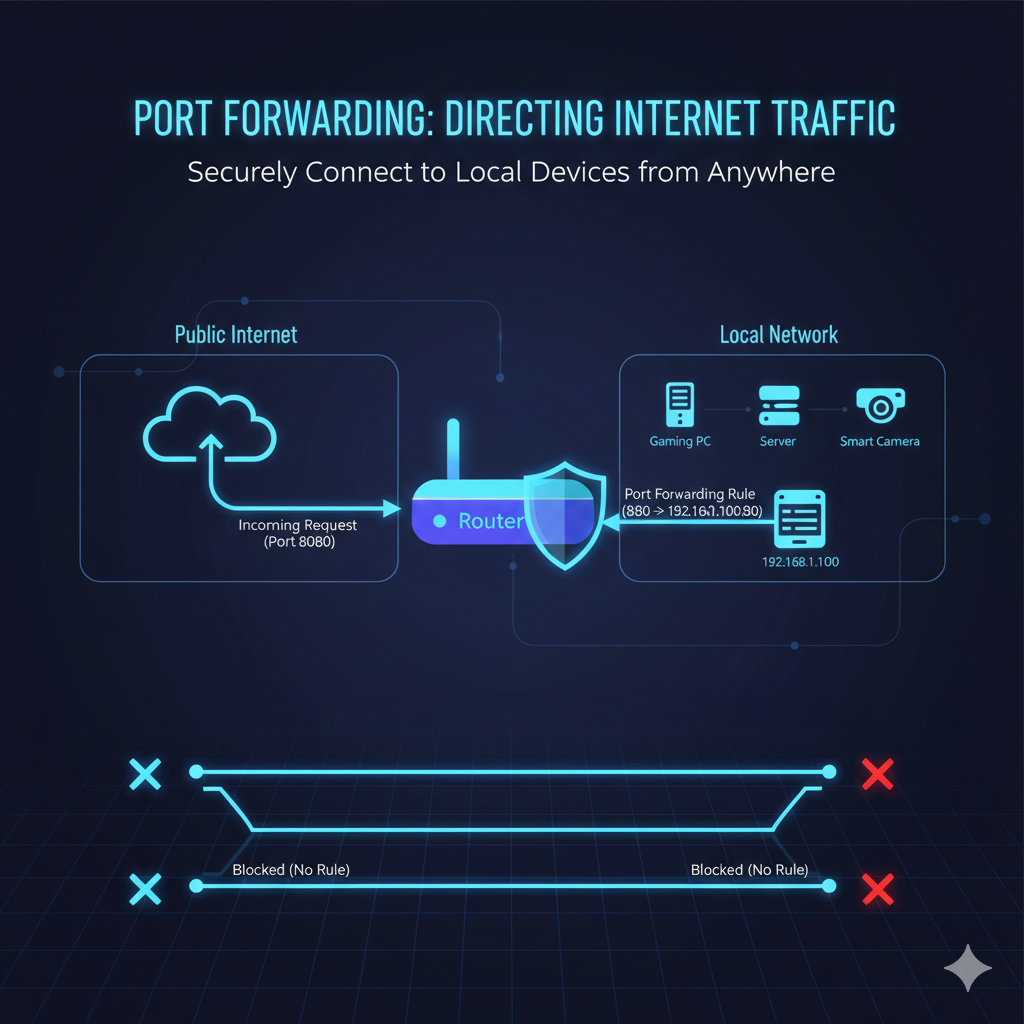

Alright, now that we’ve covered how to set up port forwarding, let’s talk about what’s actually happening here.
Your home router is basically a nightclub bouncer with a clipboard. It stands at the door (your internet connection) and decides who gets in and who gets kicked to the curb. This bouncer uses something called Network Address Translation (NAT), which is a fancy way of saying “I’m going to hide all these devices behind one IP address.”
Here’s the thing: your ISP gives you exactly ONE public IP address. One. Singular. But you’ve got seventeen devices in your house – phones, laptops, that smart fridge you regret buying, three Raspberry Pis you started projects on but never finished, and your partner’s tablet that’s only used for watching cooking videos in bed.
NAT is how your router makes this work. It gives each device a private IP address (like 192.168.1.x) and translates between these private addresses and your single public IP address. When your laptop requests a webpage, the router remembers that request and forwards the response back to your laptop. Brilliant!
But here’s where it gets interesting (well annoying).
When someone from the internet tries to connect TO you, the router has no idea which internal device they want to reach. It’s like someone calling your office’s main number and just saying “I’d like to speak to an employee” without specifying which one. The receptionist (your router) just sits there confused, then probably hangs up on them.
Port forwarding is you telling the router: “Hey, when someone knocks on port 25565, send them directly to my gaming PC at 192.168.1.100. Don’t ask questions, just do it.”
Let’s get into the weeds here because, as a systems engineer, I can’t just hand-wave away the details.
When you set up a port forward, you’re creating a static NAT mapping in your router’s translation table. Here’s what’s happening at the packet level:
Inbound Connection (Without Port Forwarding):
Inbound Connection (With Port Forwarding):
The router maintains a connection tracking table that maps:
This is stateful packet inspection, and it’s why your router doesn’t just forward ALL traffic to the configured host – only traffic destined for the specific forwarded port.

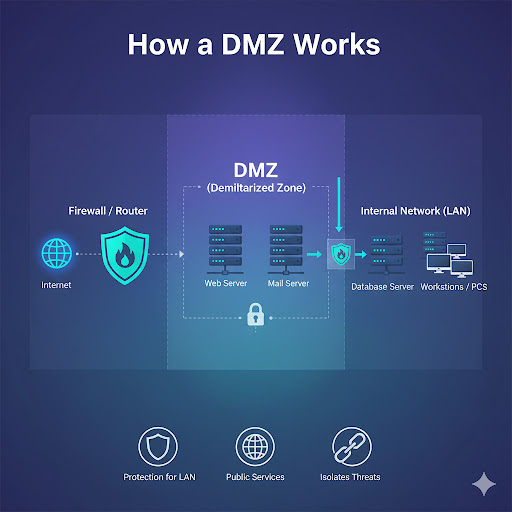

Some routers offer a “DMZ” (Demilitarized Zone) option, which sounds way cooler than it actually is. A true DMZ is a separate network segment with its own security policies. What your consumer router calls a “DMZ” is actually just “forward literally all ports to this one device.”
It’s the networking equivalent of saying “I don’t know what I’m doing, so just send everything to this one machine and let’s see what happens”.
Do not use DMZ unless you really know what you’re doing.
Despite the security implications we’re about to discuss, knowing how to set up port forwarding is legitimately useful for several scenarios:
Running your own web server, file server, or media server (Plex, Jellyfin) from home. Sure, you could pay for cloud hosting, but where’s the fun in that? Plus, good luck fitting your 47TB of totally legally acquired media on AWS without taking out a second mortgage.
Hosting Minecraft, Valheim, ARK, or Counter-Strike servers for your friends. Nothing says “I care about this friendship” like spending your weekend troubleshooting why Steve can’t connect to your server.
SSH into your home network, access your NAS, or use Remote Desktop when you’re away from home. Yes, VPNs are better for this, but sometimes you need quick access and haven’t set up that WireGuard server you’ve been meaning to.
Accessing your security cameras, smart home hub, or home assistant from outside your network. Though honestly, most of these should be using cloud services or VPNs instead. Many apps also do this for you and you don’t need to mess around with it.
Testing webhooks, APIs, or web applications that need to be accessible from the internet. Because sometimes localhost just doesn’t cut it, and ngrok is having one of its days.
localhost
BitTorrent clients, Direct Connect, and other P2P applications work better with proper port forwarding. Not that I’m encouraging anything illegal.
Okay, here’s where I put on my security engineer hat and ruin everyone’s fun. When you learn how to set up port forwarding, you’re essentially punching a hole through your firewall and putting a welcome mat on the internet side. Let’s talk about why this makes security professionals nervous.
Every open port is a potential entry point for attackers. You’ve just exposed a service that was previously protected by NAT. Now every bot, script kiddie, and sophisticated threat actor scanning the internet can see it.
Within minutes of opening a port, you’ll start seeing connection attempts from all over the world. Don’t believe me? Set up SSH on port 22 with a port forward and check your logs. You’ll see thousands of login attempts from Chinese, Russian, and Ukrainian IP addresses. They’re automated bots trying default credentials, and they never sleep.
1. Default Credentials If you’re forwarding to a web interface with default login credentials, you’re basically gift-wrapping access to your network. Change. Your. Passwords. Make them complex. Use a password manager. I’m begging you.
2. Outdated Software That service you’re exposing? When was it last updated? If you’re running software with known vulnerabilities, port forwarding is like sending a formal invitation to attackers with an RSVP form.
3. Unnecessary Services Don’t forward ports you don’t need. Seriously. I’ve seen people forward their entire printer’s web interface to the internet. Why? Did you think someone in Kazakhstan urgently needs to print their boarding pass on your Epson?
4. Weak Encryption If you’re forwarding HTTP instead of HTTPS, all traffic is sent in plaintext. Anyone between the client and your server can intercept and read everything. This includes passwords. Use TLS certificates – Let’s Encrypt is free and automated.
Here’s how to set up port forwarding without making security engineers rage quit:
Change Default Ports: Running SSH? Don’t use port 22. Pick something high and non-standard (like 47392). Security through obscurity isn’t real security, but it does reduce automated attacks by about 99%.
Implement Fail2Ban or Similar: Set up automatic IP banning after failed login attempts. After three failed SSH attempts, ban that IP for 24 hours. Suddenly, brute force attacks become very expensive for attackers.
Use Strong Authentication: Passwords should be long and complex. Better yet, use key-based authentication for SSH. Multi-factor authentication for web services. Biometric authentication for, okay, maybe that’s overkill for your Minecraft server.
Keep Everything Updated: Set up automatic security updates. Subscribe to security mailing lists for the services you’re running. Actually read them (I know, I know).
Monitor Your Logs: Check who’s connecting to your forwarded ports. Set up alerting for suspicious activity. Yes, this requires work. That’s the cost of self-hosting.
Consider a VPN Instead: For many use cases, a VPN (WireGuard, OpenVPN, or even Tailscale) is more secure than port forwarding. You create an encrypted tunnel to your home network, and then you can access everything without exposing individual services.
Use a Reverse Proxy: If you’re hosting multiple web services, use a reverse proxy like Nginx or Caddy. Forward ports 80/443 to the proxy, which then routes traffic to internal services. This gives you centralized SSL/TLS handling, authentication, and logging.
Different router manufacturers put port forwarding settings in different places. Here’s a quick reference for the most common brands:
After logging in, navigate to Advanced → Advanced Setup → Port Forwarding/Port Triggering. Select “Port Forwarding” and click “Add Custom Service” to create your rule.
Look for Forwarding → Virtual Servers or NAT Forwarding → Port Forwarding. Click “Add New” to configure your forwarding rule.

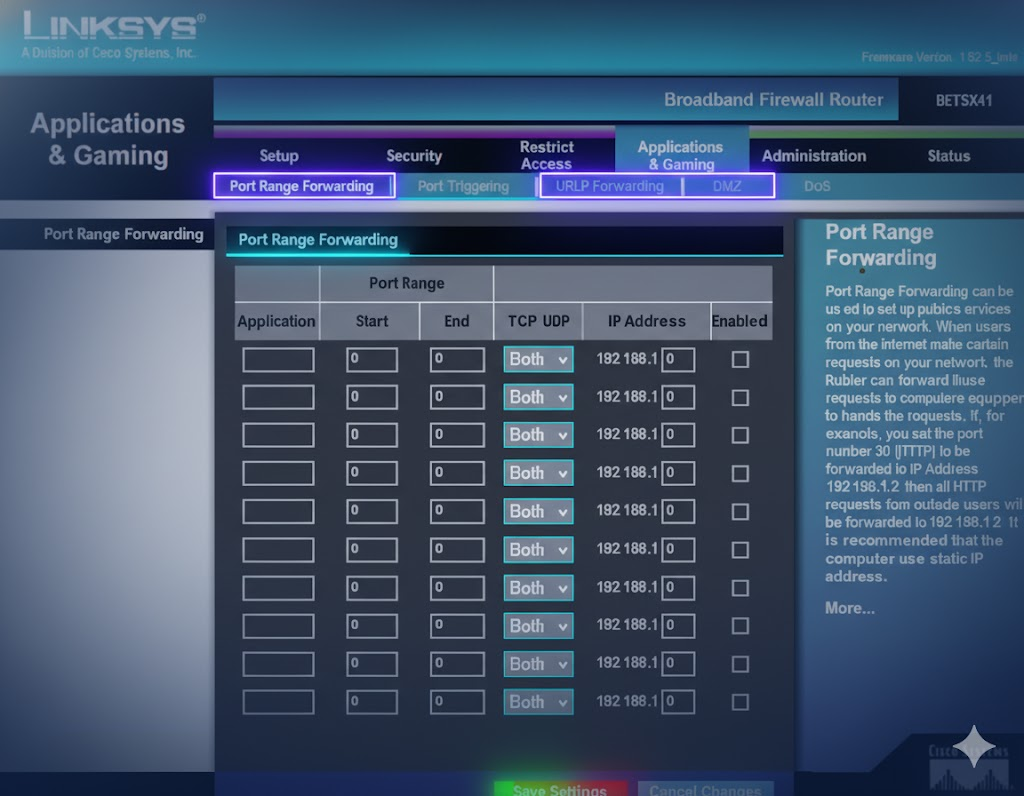

Go to Security → Apps and Gaming → Single Port Forwarding or Port Range Forwarding, depending on your needs.
Navigate to WAN → Virtual Server/Port Forwarding. ASUS routers often have gaming-specific presets that make the process easier.
Find Advanced → Port Forwarding or Virtual Server. D-Link’s interface varies significantly between models, so you might need to hunt around.
The principle of how to set up port forwarding remains the same across all brands – only the menu locations differ.
Let’s talk protocols because we’re nerds and we enjoy this sort of thing.
TCP (Transmission Control Protocol): The reliable one. Establishes connections, guarantees delivery, maintains order. Think of it as certified mail – you get confirmation of delivery. Used for HTTP, SSH, FTP, and most things where you care if data arrives correctly.
UDP (User Datagram Protocol): The fast and loose one. Fire-and-forget. No connection establishment, no delivery guarantee, no order guarantee. Think of it as shouting across a crowded room – maybe they hear you, maybe they don’t. Used for DNS, VoIP, game servers, and video streaming where speed matters more than perfection.
When you’re learning how to set up port forwarding, you need to specify which protocol. Some applications use both (like DNS uses UDP for queries but TCP for zone transfers). Check your application’s documentation, or forward both and call it a day.
Ports are 16-bit numbers, giving us 65,535 possible ports (0-65535). They’re divided into categories:
For port forwarding, you’ll typically use registered ports for your services. Just don’t pick port 80 for everything.
Here’s a fun problem: You set up port forwarding, give your friends your public IP address, and they can all connect. Great! Then you try to connect using your own public IP from inside your network, and… nothing works.
Welcome to the hairpin NAT problem (also called NAT loopback or NAT reflection).
The issue: Your connection needs to go to your router, which then needs to loop it back to a device on the same network. Many consumer routers don’t support this because it’s technically complex and not in the standard specs.
Solutions:
Universal Plug and Play (UPnP) lets applications automatically configure port forwarding without you manually setting it up. Sounds convenient, right?
It is! Until you realize it means any application on your network can open ports to the internet without asking permission. Including malware. Oops.
UPnP is useful for applications like gaming consoles and VoIP phones that need dynamic ports. But it’s a security risk because it bypasses your conscious decision to expose services.
My recommendation: Disable UPnP and manually learn how to set up port forwarding for services you actually want to expose. Yes, it’s more work. That’s why they pay me the big bucks (I just cried a little knowing that’s a lie).
Port triggering is like port forwarding’s smarter sibling. Instead of permanently forwarding a port, it temporarily forwards ports when it sees outbound traffic on a specific port.
Example: When your Xbox sends traffic to port 3074, the router temporarily forwards inbound ports 3074-3095 back to the Xbox for 60 seconds.
It’s more secure than permanent forwarding but less reliable. Good for gaming consoles, less good for servers that need constant availability.
Here’s a fun fact: with IPv6, port forwarding becomes mostly obsolete. Every device gets its own public IP address, so NAT isn’t necessary. You just firewall things at the device level.
Of course, IPv6 adoption is slower than my grandma on a Sunday drive, so we’re stuck with NAT and the need to understand how to set up port forwarding for the foreseeable future. ISPs love their IPv4 address exhaustion solutions (like CGNAT) too much to let go easily.
Because it will go wrong. Murphy’s Law guarantees it. Even after you’ve learned how to set up port forwarding correctly, issues can still arise.
Issue: You can connect to your service using the local IP, but not from the internet.
Probable causes:
Debug steps:
Issue: It works sometimes, fails other times, and you’re questioning your career choices.
Issue: Port checker says the port is closed or filtered.
netstat -an | grep PORT
ss -tlnp | grep PORT
Mistake #1: Wrong Internal IP Address You forwarded to 192.168.1.100, but your device is actually at 192.168.1.105. Double-check with ipconfig or ip addr on the target device.
Mistake #2: Service Not Listening The port forward is correct, but your application isn’t actually running or listening on that port. Verify with netstat or ss.
netstat
ss
Mistake #3: Firewall Interference Windows Firewall, iptables, or third-party security software is blocking the connection even though the port forward is configured. Create specific allow rules.
Mistake #4: ISP Blocking Some ISPs block common ports like 25 (SMTP), 80 (HTTP), and sometimes 443 (HTTPS) for residential connections. Use alternate ports like 8080 or 8443.
Mistake #5: CGNAT Your ISP uses Carrier-Grade NAT, meaning you don’t have a real public IP address. You’re behind another layer of NAT that you can’t control. Solutions include requesting a real IP (may cost extra) or using a VPN/tunnel service.
After years of working as a systems engineer, I’ve developed a checklist for setting up port forwarding that balances functionality with security:
Following this checklist whenever you need to learn how to set up port forwarding will save you from many common problems and security incidents.
Let’s walk through some complete examples of how to set up port forwarding for common use cases.
Scenario: You’re hosting a Minecraft Java Edition server for friends.
Steps:
Security notes: Keep your Minecraft server updated, use a whitelist, and consider plugins like LoginSecurity for additional protection.
Scenario: You’re running a personal blog on a home web server.
Security notes: Never run HTTP only – always use HTTPS. Keep your web server software updated. Consider using a reverse proxy like Nginx.
Scenario: Remote access to your home security camera system.
Security notes: Security cameras are a prime target. Use strong passwords, enable encryption, keep firmware updated, and consider VPN access instead of direct port forwarding. See our recommended camera in this Reolink Security Camera Review.
While knowing how to set up port forwarding is valuable, sometimes there are better alternatives:

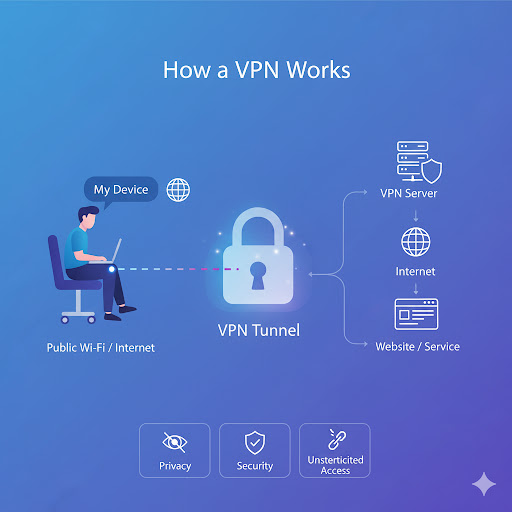

Setting up a VPN server (WireGuard, OpenVPN) on your network lets you securely access everything without individual port forwards. You forward one VPN port, then access all internal services through the encrypted tunnel.
Advantages: More secure, single point of configuration, encrypted trafficDisadvantages: Slightly more complex setup, requires VPN client on devices, VPN’s are paid.
Services like Cloudflare Tunnel (formerly Argo Tunnel) or ngrok let you expose services without port forwarding at all. They create outbound connections to cloud services that proxy inbound traffic.
Advantages: Works behind CGNAT, DDoS protection, no port forwarding neededDisadvantages: Traffic goes through third party, may have costs, latency
These create mesh VPNs that don’t require any port forwarding. They use NAT traversal techniques to establish peer-to-peer connections.
Advantages: Dead simple setup, works anywhere, secure by defaultDisadvantages: Requires software on all devices, dependent on third-party service
Each approach has tradeoffs. Understanding how to set up port forwarding gives you options, but don’t feel locked into using it if alternatives better suit your needs.
Port forwarding is a powerful tool that gives you control over your network and enables cool self-hosting projects. It’s also a security responsibility that requires ongoing maintenance and vigilance.
As a systems engineer who’s seen both the awesome possibilities and the terrible consequences of misconfigured networks, here’s my advice:
Do it deliberately. Understand what you’re exposing and why. Don’t just blindly follow tutorials without comprehending the implications.
Do it securely. Follow best practices, keep things updated, use strong authentication. The extra 30 minutes spent on security will save you weeks of cleanup after a breach.
Do it minimally. Only forward what you actually need. Every open port is a potential risk. Close ports/IP’s you’re no longer using.
Do it monitored. Check your logs. Know what’s normal for your services. Set up alerts for anomalies.
Do it documented. Write down what you forwarded and why. Future you, troubleshooting at 3 AM, will be incredibly grateful for notes about why you forwarded port 47392 to that weird VM in the corner.
Understanding how to set up port forwarding is a fundamental networking skill that opens up possibilities for self-hosting, gaming, and remote access. But it’s not something to do carelessly. Treat each forwarded port as a deliberate decision with security implications.
